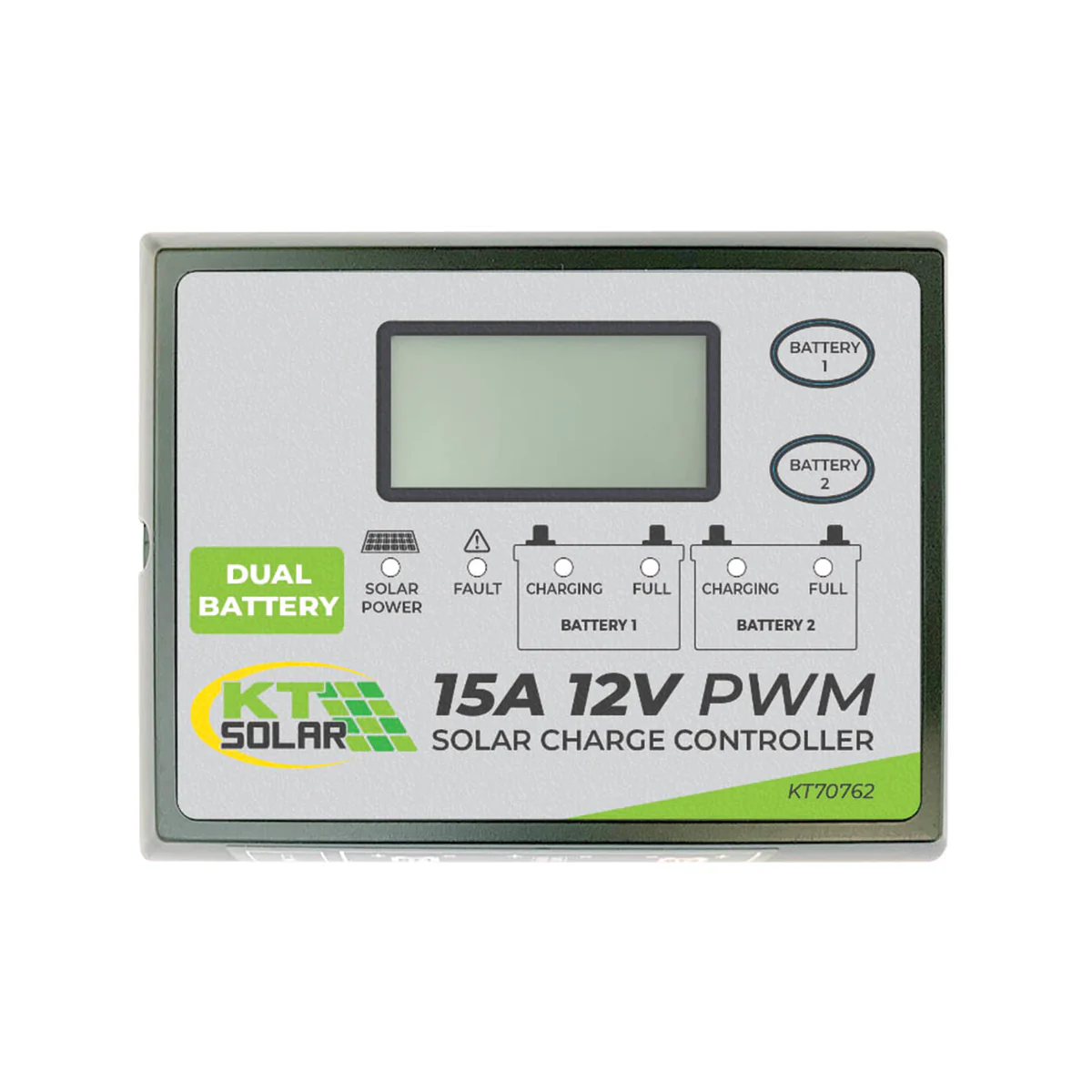

Kt Solar 15A 12V Solar Controller PWM KT70762 - Dual Battery Charging - LCD Display

Kt Solar 15a 12v Solar Controller Pwm kt70762 is a dual battery charging solar controller designed for efficient energy management in solar applications.

The KT 15 Amp Solar Controller is engineered to charge two 12V deep cycle batteries simultaneously, accommodating various battery types including Lead Acid, LTO, Gel, AGM, LiFePO4, and Calcium. This solar charge controller prevents overcharging and features an automatic equalisation function for deeply drained conventional lead-acid or calcium batteries. It includes a digital LCD display that shows battery voltage, charging current, capacity, percentage, battery type, ambient temperature, and fault codes. Coloured LEDs indicate operational status and battery conditions. It is recommended for use with single solar panels up to 160W or two 100W solar panels configured in parallel. The PWM technology ensures high charging efficiency and rapid recharging while maintaining battery health.

Features

• 12V dual battery charging capability
• Compatible with solar panels up to 160W or 2 x 100W in parallel
• LED power and charging status indicators
• Selection modes for Battery 1 and Battery 2 (BT1 – BT2)
• Suitable for various battery types including Gel, AGM, Wet, Calcium, LTO, and LiFePO4

Specifications

Operating Temperature	-20°C to +80°C
Operating Voltage	12V
Rated Current	15A
Battery Voltage	12V
Product Weight	1.20 kg
Material	Polycarbonate
Dimensions (W x H x D)	145 mm x 175 mm x 40 mm
Colour	White
Model Number	KT70762

Kt Solar 15a 12v Solar Controller Pwm kt70762 is designed for efficient solar energy management.
