Pryda Half Stirrup Post Anchor 200mm M10 - Galvanised Steel - Durable Termite Protection

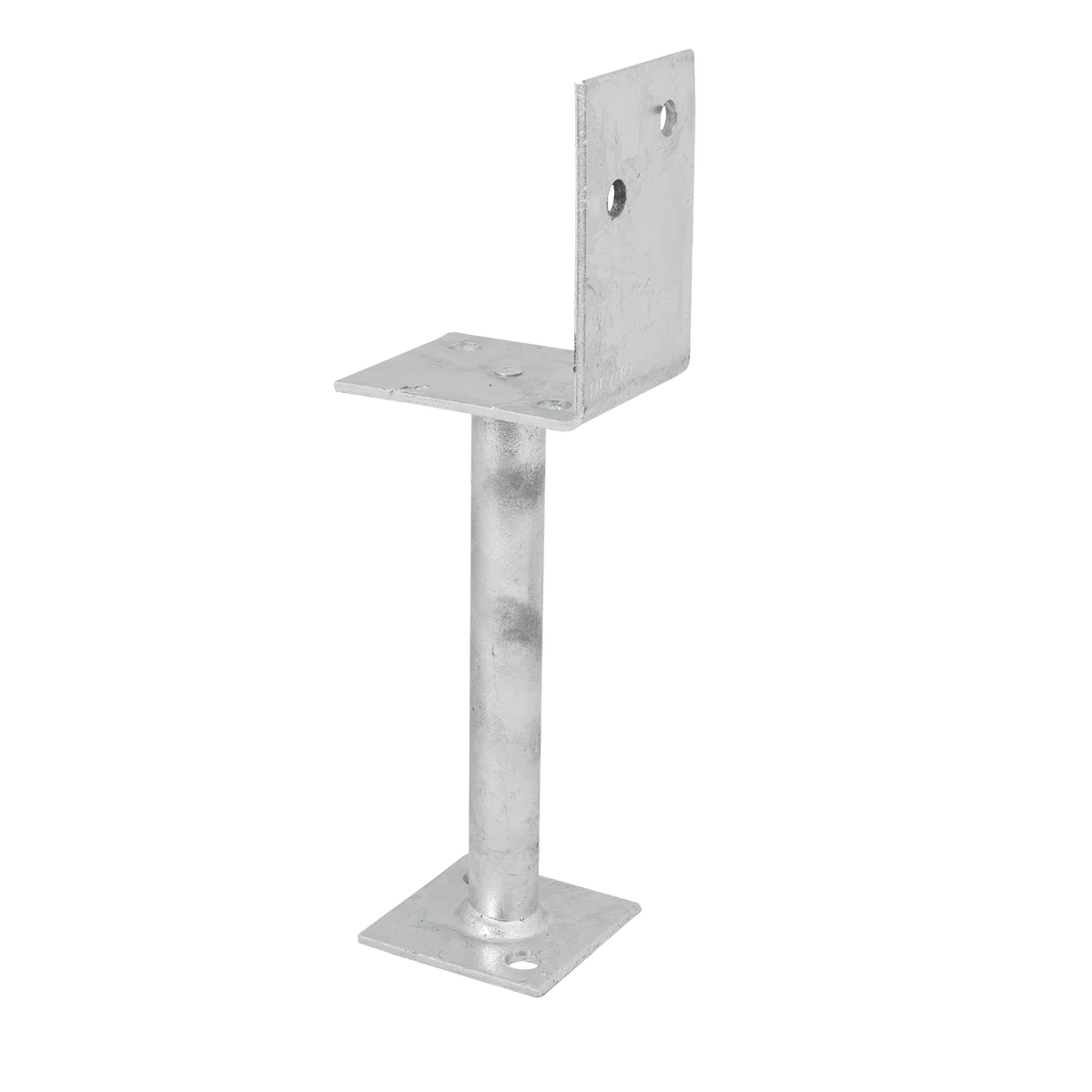

Pryda 200mm m10 Half Stirrup Post Anchor is a robust anchoring solution designed for securing posts to existing concrete structures, ensuring stability and compliance with Australian standards.
This half stirrup post anchor is engineered to conform to AS3660.1 - 2000 for termite protection, featuring all welded joints for enhanced durability. With a stem diameter of 25mm and a thickness of 2.0mm, it provides reliable support. The stirrups are sealed for termite protection as per AS1397-2001, and the stirrup thickness is 4mm. This anchor is primarily used for bolting to existing concrete but can also be cast-in with a minimum clearance of 75mm, making it ideal for applications where posts are positioned against walls or steps.
Features
- Conforms to AS3660.1 - 2000 for termite protection
- All joints are welded for increased strength
- Sealed stems in stirrups for enhanced termite protection
- Designed for bolting to existing concrete or cast-in applications
- Suitable for posts located against walls or steps
Specifications
| Dimensions (W x H x D) | 200mm x 176mm x 35mm |
| Weight | 0.92kg |
| Material | Hot Dip Galvanised Steel |
| Model Number | PSHS200/6 |
| Leg Length | 200mm |
| Bolt Hole Size | M10 |
| Stirrup Width | 90mm |
| Finish | Galvanised |
The Pryda 200mm m10 Half Stirrup Post Anchor is engineered for reliable post anchoring in various applications.
